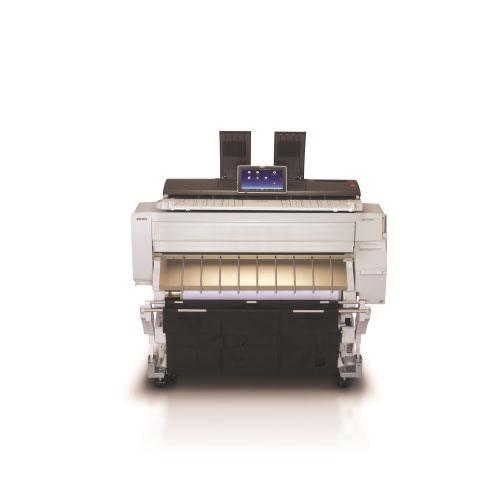

MP CW2201SP
Designed for CAD/GIS and Graphic Arts applications, the Ricoh MP CW2201SP has enhanced speed and image quality to help you capture more Mono EP volume and increase colour productivity. While advanced GEL-JetTM waterproof ink technology and innovative features such as the smart operation panel and auto nozzle detection, help boost your efficiency to stay highly competitive. All of which makes it ideal for colour GA entry level applications*, both indoor and outdoor.
*Paper Media
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- Features and benefits
-
CAD benefits
- Print, copy and scan – all in full colour
- Delivers high-quality colour output fast
- Makes colour output affordable
- Innovative GEL-Jet waterproof ink technology
- Superb line accuracy, smudge-free and UV-resistant
- Print on blue paper for no showthrough on posters
- Specifications
-
GENERAL Configuration Console Copying/printing process On-demand Piezo inkjet system (pigment-based ink), Pigment based ink (all 4 colours) Paper source: standard Roll paper feeder Paper source: optional Roll paper feeder Resolution 1,200 x 1,200 dpi Zoom 25% to 400% by 1% increments Reproduction ratio Metric: 25%, 35.4%, 50%, 70.7%, 141.4%, 200%, 282.8%, 400%, Engineer (inch): 25%, 33.3%, 50%, 64.7%, 129.4%, 200%, 258.8%, 400%, Architecture: 25%, 33.3%, 50%, 66.7%, 133.3%, 200%, 266.7%, 400% Cutting method Preset size cut, Synchronised cut, Variable cut Memory capacity 4 GB Hard Disk Drive 320 GB (shared with copier/printer/scanner) Power source 120 - 127 V, 15 A (max.), 60 Hz Dimensions (W x D x H) 1,384 x 675 x 1,219 mm, 54.5 x 26.6 x 48" Weight 120 kg, 265 lbs. COPIER First copy time from standby mode A0 SEF: B/W: high speed copy: 51 seconds, standard: 71 seconds, A0 SEF: full colour: high speed copy: 81 seconds, standard: 155 seconds, A1 LEF: B/W: high speed copy: 29 seconds, standard: 41 seconds, A1 LEF: full colour: high speed copy: 53 seconds, standard: 84 seconds Copying speed A1, LEF (B/W): high speed copy: 3.8 cpm, standard 2 cpm, A1, LEF (colour): high speed copy: 2.1 cpm, standard 1.2 cpm, A0, SEF (B/W): high speed copy: 1.9 cpm, standard 1.1 cpm, A0, SEF (colour): high speed copy: 1.1 cpm, standard 0.6 cpm Multiple copying 1 to 99 PRINTER Controller board Embedded CPU - Intel Atom Processor BayTrail-I: 1.75 GHz Print speed A1 LEF: B/W: 3.8 ppm, Colour: 2.1 ppm, A0 SEF: B/W: 1.9 ppm, Colour: 1.1 ppm Print resolution Speed priority (drawing): 600 x 300 dpi, Speed priority: 600 x 600 dpi, Standard: 600 x 600 dpi, Quality priority: 600 x 600 dpi, Quality priority mode for only coated paper, film (matted) and special paper: 1,200 x 1,200 dpi Print drivers Adobe Postscript, HDI Supported file formats HP-GL, HP-GL2, PostScript 3 Fonts European 136 fonts (PS3) Network interface: standard 10/100/1000 base-TX, USB 2.0, USB Host Network interface: optional Wireless LAN IEEE 802.11a/g/n Network protocol: standard TCP/IP (IPv4, IPv6) Network protocol: optional IPX/SPS Standard MIB MIB-II (RFC1213), Host Resource (RFC1514), Printer MIB (RFC1759) Private MIB Original Supported CAD version HDI Driver HDI AutoCAD 2007-2016 Media to print Yes (JPEG/TIFF/PDF) Printer features Unauthorized Copy Prevention, One Direction, WSD Printer, Color Matching, POP, CUD, Media to Print (JPEG/TIFF/PDF), PDF Direct Print, Ink save mode (save ratio: 50%) SCANNER Color scan Standard Scan to multimedia Standard Media to print Standard Scan speed: colour 26.7 mm/s or 1.05 ips (600 dpi), 40 mm/s or 1.57 ips (200 dpi) Scan speed: B/W 80 mm/s or 3.14 ips (600 dpi), 160 mm/s or 6.3 ips (200 dpi) Scan resolution 300 - 600 dpi, TWAIN: up to 2,400 dpi Scan modes: colour Text/Photo, Photo Scan modes: B/W Text, Text/Photo, Text/Line Art (default), Grayscale Scan detection Auto Detect, Preset Paper Size, Custom Size RGB support Standard Scan protocols - Network TCP/IP Scan protocols - Scan to email SMTP Scan protocols - Scan to folder SMB, FTP Compression method - B/W MH, MR, MMR, MMR (default), JBIG2 Compression method - Colour JPEG (5 levels) Image density Auto Density Selection (effective only in B&W and Grayscale Scan Mode), Manual: 7 levels (effective in B&W/Grayscale and Full Color Scan Mode) Scanner features Scan-to-Email (SMTP), Scan-to-Folder (SMB, FTP), Network TWAIN, Mixed Size Mode, Image Rotation PAPER HANDLING Original feed Sheet Original set position Center Original copy/scan size Minimum: 210 - 210 mm, Minimum: 8.5 - 8.5", Maximum: 914 - 15,000 mm, Maximum: 36 - 590" Original paper width 210 / 257 / 297 / 364 / 420 / 440 / 490 / 515 / 594 /610 / 620 / 625/ 660 / 680 / 707 / 728 / 800 / 841 / 880 / 914.4 mm, 8.5" / 9" / 11" / 12" / 17" / 18" / 22" / 24" / 30" / 34" / 36" Original paper weight Paper feed guarantee: 0.035 - 1 mm, Image quality guarantee: 0.09 - 0.2 mm (64 - 190 g/m²) Output paper size Maximum Roll Feeder: 914.4 mm width, 15,000 mm length, Maximum Roll Feeder: 36" width, 590" length, Maximum bypass: 914.4 mm width, 2,000 mm length, Maximum bypass: 36" width, 78.7" length Output paper weight Roll Paper: 0.068 - 0.2 mm (51 -200 g/m²), Cut Sheet: 0.068 - 0.4 mm (51 -220 g/m²) Roll paper width 297 / 364 / 420 / 440 / 490 / 515 / 594 / 610 / 620 / 625 / 660 / 680 / 707 / 728 / 800 / 841 / 880 / 914.4 mm, 11" / 12" / 13.5" / 15" / 17" / 18" / 22" / 24" / 30" / 34" / 36" Paper feeding capacity Width: 279.4 - 914 mm, 8.5" - 36", Maximum length: 5,905 mm, 150,000", Maximum diameter: 176 mm, 6.7", Bypass: 1 sheet Paper output capacity 10 sheets (plain paper) ECOLOGY Maximum power consumption 180 W
Related software & apps
-
TotalFlow PrintCopy Tool
TotalFlow Print Tool helps you efficiently print large quantities of drawings and documents, while Copy Tool links wide-format multifunction printers with a colour plotter for colour copying.
Related products
-
MP W8140SP
With high-speed monochrome printing at an output of 14 ppm (A1 horizontal), this printer has been created for the needs of CAD and PFP. Compact design, reliable and easy to use.
-

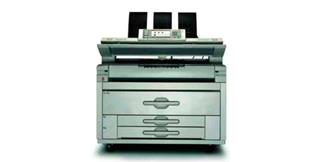

MP W7100SP
Specially created for the needs of CAD and PFP to increase the speed of high quality output and lower the cost. Offers high-speed monochrome printing at 10 ppm (A1 horizontal).
