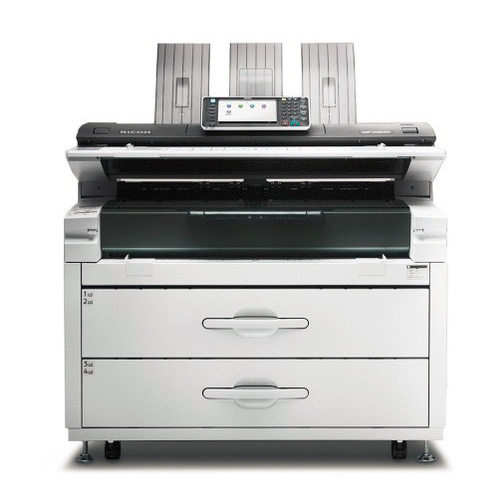

The Ricoh MP W8140SP has been specially created for the needs of CAD and PFP to increase the speed of high quality output and lower the cost. Its compact design combines the reliability, durability and ease of use that are so essential in today’s workplace. All of which helps drives business and profits.
COMMISSION REGULATION (EU) 2019/2020. The light source of this product is not intended for applications other than image printing.
- B&W printing
- Features and benefits
- New and even better wide format printing.
- High-speed monochrome printing at 14 pages/minute (A1 Horizontal).
- Colour Scanner.
- New USB/SD slot.
- Space saving in design and operation
GENERAL Configuration Console Copying/printing process Electro-photographic printing Paper source: standard 2 Roll paper feeder Paper source: optional 2 Roll paper feeder, 250 sheets x 2 drawer paper cassettes Resolution 600 x 600 dpi Grayscale printing 2 levels Zoom 25% to 400% by 0.1% increments Cutting method Preset size cut, Synchronised cut, Variable cut Hard Disk Drive 320 GB (shared with copier/printer/scanner) Power source 208 - 240 V, 15 A (max.), 60 Hz Dimensions (W x D x H) 1,250 x 755 x 1,193 mm, 49.2 x 29.7 x 47" Weight 295 kg, 649 lbs. COPIER Copy modes Text, Text/Photo, Photo, Drawing, Generation Text, Generation Photo, Pasted Original, Background Line, Highlighter Copier features Auto Paper Selection (APS), Auto Reduce/Enlargement, User Auto Reduce/Enlargement, Preset Reduce/Enlargement, Zoom, Size Magnification, Directional Magnification, Directional Size Magnification (percentage and mm/inch), Fine Magnification, Electronic Sort, Image Overlay, Format Overlay, Negative/Positive, Mirroring, Double Copy, Repeat Copy, Sample Copy, Combine Images, Job Interrupt, User Code, Key Operator Code, Job Program (up to 10 jobs), Margin Adjustment - 0 to 200 mm (by 1 mm steps), Image Shift - Front/Rear/Left/Right (0 to +/- 200 mm by 1 steps), Unprintable Margins - 5 mm (lead edge, trail edge, each side), Edge Erase, Preset Stamps, User Preset Stamps, Date Stamp, Page Stamp, Document Server: Store up to 3,000 documents, Auto Off, Energy Saver Mode, Auto Start PRINTER Controller board Embedded CPU 1.06 GHz Print speed 14 ppm D-size LEF, 7 ppm E-size SEF Print resolution Up to 600 dpi Print drivers Adobe Postscript, HDI Supported file formats HP-GL, HP-GL2, HP-RTL, TIFF, CALS, JPEG, PostScript, PDF, Microsoft Office, DWG/DWF Fonts European 136 fonts (PS3) Network interface: standard 100 base-TX/10 base-T Ethernet, USB 2.0 Network interface: optional Wireless LAN IEEE 802.11a/g/n Network protocol: standard TCP/IP (IPv4, IPv6) Network protocol: optional IPX/SPS Supported OS Windows® XP/Vista/7/8/8.1/2003 Server/2008 Server/2008R2 Server/2012 Server/2012R2 Server, Mac® OS (10.7 or later) Media to print Yes (JPEG/TIFF/PDF) Printer features Sample Print, Locked Print, Hold Print, Stored Print, Store and Print, Unauthorized Copy Prevention, One Direction, WSD Printer, Color Matching, POP, CUD, PDF Direct Print Supported languages English, Brazilian Portuguese, Danish, Dutch, Finnish, French, German, Italian, Japanese, Korean, Norwegian, Polish, Romanian, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish SCANNER Color scan Standard Scan to multimedia Standard Media to print Standard Scan speed: colour 200 mm/s or 0 ips (600 dpi) Scan speed: B/W 340 mm/s or 0 ips (600 dpi) Scan resolution 150 - 600 dpi, TWAIN: up to 1,200 dpi Scan modes: colour Text/Photo, Photo Scan modes: B/W Text, Text/Photo, Text/Line Art (default), Photo, Drawing, Text/Drawing, Grayscale Scan detection Auto Detect, Preset Paper Size, Custom Size Scan protocols - Network TCP/IP Scan protocols - Scan to email SMTP, POP before SMTP Scan protocols - Scan to folder SMB, FTP, NCP Image density 9 levels of lighter to darker Edit Erase Border, Positive/Negative, Mirror Image Scanner features Scan-to-Email (SMTP), Scan-to-Folder (SMB, FTP), Scan-to-URL, Scan-to-USB/SD, Network TWAIN, Scan-to-NCP, Scan-to-Document Server, Authentication Modes, Image Rotation, Contrast Setting Integrated, Continuous Input, Invert, Multiple Scan Settings, Reading Area Setting, RGB (24-bit), Grey, B/W Preview Full view: 18 x 24", Section preview: 36 x 48" File formats Multi page TIFF, Single page TIFF, Multi page PDF, Single page PDF, Single page JPEG, High Compression PDF, PDF/A ECOLOGY Maximum power consumption 3.5 kW per hour
