Endless printing possibilities

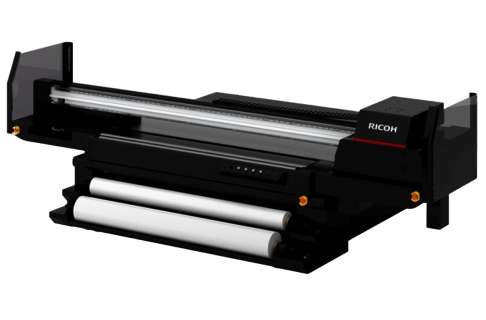

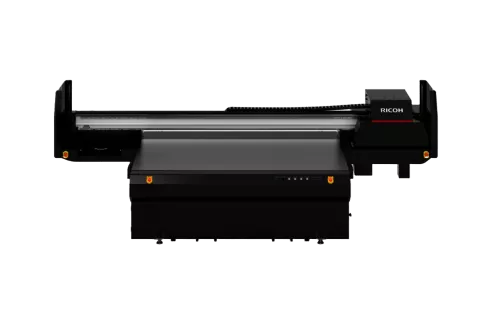

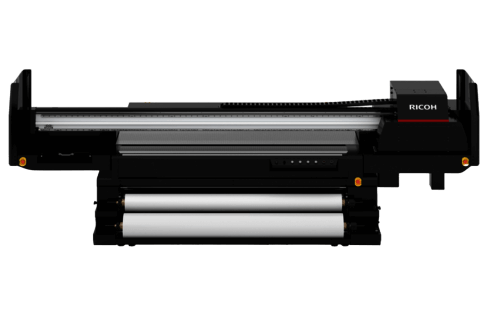

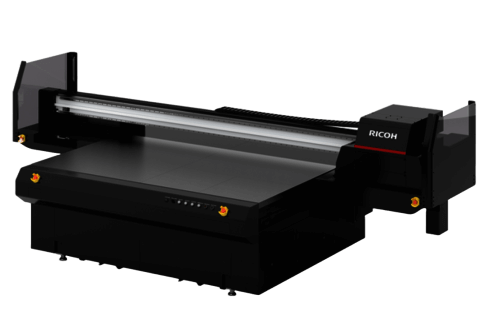

Tap into the profitable sign and graphics market by producing products fast and efficiently on substrates up to 11cm thick with the RICOH Pro TF6251 UV flatbed printer. Developed by Ricoh, the RICOH Pro TF6251 is the ideal solution to boost productivity and diversify applications beyond traditional signage. Capitalise on emerging markets, including short run packaging, promotional products, and industrial and interior décor. Achieve industry leading productivity and pursue ambitious growth plans fuelled by high profit potential, low operating costs, superb image quality and exceptional reliability.

      Key features

Dazzling image quality

Impress your clients with stunning, durable output. With a resolution of up to 635 x 1800 dpi and Ricoh's advanced variable-drop technology, the printer delivers smooth gradations, sharp text, and vibrant colours.

A built-in primer ensures excellent ink adhesion, while a clear ink option adds eye-catching effects that elevate your work to a premium level.

A professional showcase of Ricoh printing technology producing dazzling, ultra-high-quality output. The scene features a vibrant printed poster with sharp text, smooth gradients, and vivid colors that stand out with exceptional clarity. A detail view highlights the 635 x 1800 dpi resolution and the precision of variable-drop technology. Another print sample demonstrates the effect of a clear ink overlay, adding glossy, eye-catching highlights that elevate the design to a premium finish. The composition conveys durability, brilliance, and professional-grade quality, with a polished, well-lit environment emphasizing advanced technology and premium output.

Exceptional productivity

Maximise your return on investment with rapid production speeds. The Pro T7210 achieves industry-leading print speeds of up to 1,106 ft²/hr in draft mode, helping you handle demanding workloads efficiently and meet tight deadlines.

The multi-zone vacuum system with pin registration simplifies material handling, ensuring accurate and consistent output with minimal effort.

A dynamic showcase of the RICOH Pro T7210 flatbed printer in a modern production environment, emphasizing exceptional productivity and speed. The printer is shown operating at high speed, printing a large, vivid design across a rigid board. A digital display or overlay highlights print speeds up to 1,106 ft²/hr, symbolizing industry-leading performance. The flatbed features the multi-zone vacuum system with pin registration, with materials aligned precisely, conveying effortless handling and accuracy. The workspace feels efficient, professional, and fast-paced, reflecting the printer’s ability to manage demanding workloads and tight deadlines with ease.
Specifications
Explore the details that define this product's capabilities. See the specs that matter most to you.
GENERAL
Configuration

True Flatbed + Roll2Roll (Opt)

Copying/printing process

UV based ink (all 7 colours)

Paper source: standard

Rigid boards

Resolution

635 x 1,800 dpi

Grayscale printing

8 levels

Memory capacity

4 GB (PC Rip)

Hard Disk Drive

100 GB (PC Rip)

Power source

208 - 240 V, 30 A (max.), 60/ Hz

Dimensions (W x D x H)

4,812 x 2,200 x 1,580 mm

Weight

1,650 kg

PRINTER
Controller board

PC Rip (External)

CPU

Intel® CoreTM i5 2 GHz or more recommended

Print speed

116 m²⁄h

Print resolution

Up to 1,800 dpi

Print drivers

HDI, Adobe Postscript (ColorGATE/Onyx/Caldera DRVs available)

Fonts

European fonts (PS3)

Supported OS

Windows® 7, Windows® 10 (64bit)

PAPER HANDLING
Original feed

Rigid⁄Roll

Original paper width

Rigid Materials: From 210 x 297 mm to 2,500 x 1,300 mm, Roll Materials: Width from 210 x 297 mm to 2,190 mm

Original paper weight

Rigid Materials: 45 kg/m², Roll Materials: 55 kg, Rigid Materials Thickness: 110 mm, Roll Materials Thickness: 110 μm - 432 μm

Output paper size

Rigid Material: up to 2,500 mm x 1,300 mm, Roll Material: up to 2,190 mm width

Output paper weight

Rigid Materials: 45 kg/m², Roll Materials: 55 kg

Roll paper width

Roll Materials: Width 2,200 mm / Length 300 m
