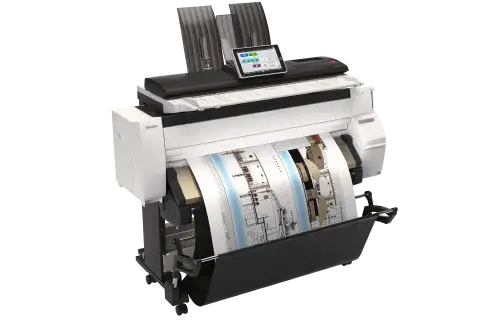

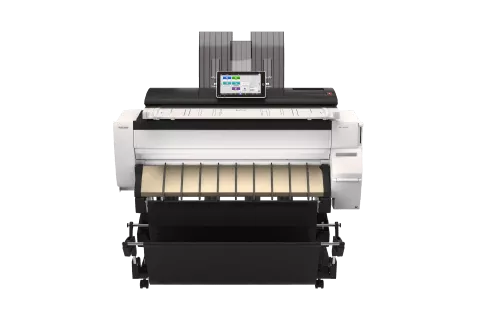

IM CW2200
- Impressive continuous printing – print documents up to 33 metres long
- Enhanced stacking capacity - up to 10 original sheets
- Automatic paper roll setting - no need to hand feed the paper
- Fast scanning speeds - up to 35.3mm/s for colour and up to 106.7mm/s for mono
Delivering precision, quality and durability in Large Format
Enhanced Productivity & easy Operation
Production downtime is key for any business, so thanks to the automatic paper roll setting, we’ve ensured this device requires minimum user attention. Up to 10 sheets of A1 can be stacked on the upper tray and documents up to 33 metres long can be printed continuously, thereby increasing productivity.

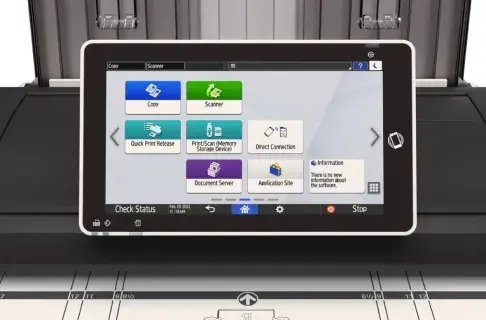

Next generation Controller Panel
The new Smart Operation Panel designed with colourful touch screen, offers an intuitive and easy to user interface. The versatile functionality and fast, simple navigation help to reduce operation error and improve the way you interact with the device.
Innovative Print Technology
Showcase your designs from precise line drafts to boldly coloured 3D renders with the highest accuracy and finest details. Our waterproof GEL-Jet™ technology uses inks that are smudge free and UV resistant, so your prints are high quality, durable, and can be viewed on site, in any weather.
Console
On-demand Piezo inkjet system (pigment-based ink)
600 x 600 dpi
25% to 400% by 0.1% increments
Metric: 25%, 35.4%, 50%, 70.7%, 141.4%, 200%, 282.8%, 400%
4 GB
320 GB
220 - 240 V, 1.9 A (max.), 50/60 Hz
1,384 x 675 x 1,220 mm
120 kg
A0 SEF: B/W: high speed copy: 51 sec., standard: 71 sec., A0 SEF: full colour: high speed copy: 81 sec., standard: 155 sec., A1 LEF: B/W: high speed copy: 29 sec., standard: 41 sec., A1 LEF: full colour: high speed copy: 53 sec., standard: 84 sec.
1 to 99
Text, Text/Photo, Photo, Drawing, Other (Generation/Map/Background Line/Patched Original/Highlight Pen)
Embedded
1.6 GHz
A1 LEF: B/W: 3.8 ppm, Colour: 2.1 ppm, A0 SEF: B/W: 1.9 ppm, Colour: 1.1 ppm
Speed priority (drawing): 600 x 300 dpi, Standard: 600 x 600 dpi, Quality priority: 600 x 600 dpi, Quality priority mode for only coated paper, film (matted) and special paper: 1,200 x 1,200 dpi
Adobe Postscript
European 136 fonts (PS3)
100 base-TX/10 base-T Ethernet, 10/100/1000 base-TX, USB 2.0, USB Host
Wireless LAN IEEE 802.11a/b/g/n
TCP/IP (IPv4, IPv6)
Windows 8.1/10 (32/64bit), Windows 11, Server 2012/R2, Server 2016/2019/2022, MacOS 10.14 or later , Citrix XenApp 7.15 LTSR, VirtualApps/Desktops 2012 or later
35.3 mm/s or ips (600 dpi)
106.7 mm/s (600 dpi)
150 - 600 dpi, TWAIN: up to 2,400 dpi
Text, Text/Photo, Text/Line Art (default), Photo, Grayscale
Auto Detect, Preset Paper Size, Custom Size
Standard
TCP/IP
SMTP
SMB, FTP
MH, MR, MMR (default), JBIG2
JPEG (5 levels)
Sheet
Center
Minimum: 210 - 210 mm, Maximum: 914 - 15,000 mm
Paper feed guarantee: 0.035 - 1 mm, Image quality guarantee: 0.09 - 0.2 mm (64 - 190 g/m²)
Maximum Roll Feeder: 914.4 mm width, 33,000 mm length, Maximum bypass: 914.4 mm width, 2,000 mm length
Roll Paper: 0.068 - 0.2 mm (51 -190 g/m²), Cut Sheet: 0.068 - 0.4 mm (51 -220 g/m²)
Width: 297 - 914 mm, 11" - 36", Bypass: 1 sheet
180 W
