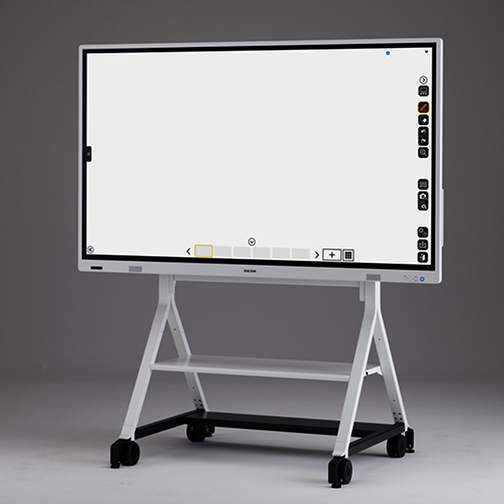

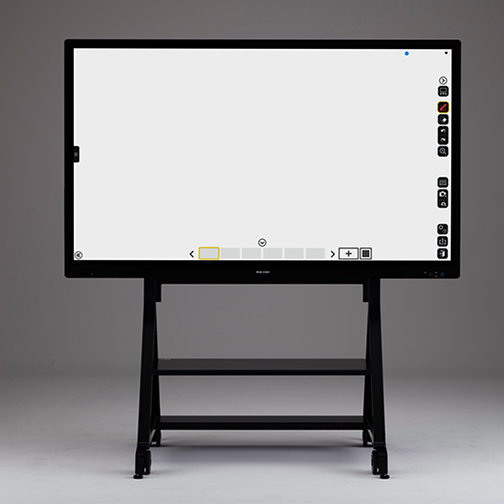

D7510
Transform your meetings and turn presentations into constructive experiences with the RICOH Collaboration Board D7510. This all-in-one collaboration hub lets the whole team actively participate in meetings, brainstorms and presentations.
The D7510 comes with embedded built-in speakers ready to be connected with any video conference end point. It lets teams share and annotate documents and browse the web together in real time. With a 75-inch touchscreen and vivid 4k Ultra HD resolution, the D7510 is ideal for medium-large conference rooms and seminar rooms.
- Features and benefits
-
The RICOH Collaboration Board D7510 is a one-stop collaboration powerhouse. The 75-inch screen provides ample space for presenting and sharing ideas across the team. And it uses shadow sensing technology that enables precise document annotation. Now you can browse the web and securely share and mark up files, easily keeping the team aligned whether they’re in the room or across the world.
- One-stop collaboration hub with precise document annotation capabilities
- 4K display bringing high quality and detailed images
- Front positioned speakers for a better sound quality
- Sophisticated exterior design black or white up to 30% less heavy than predecessor displays, anti-glare anti-fingerprint coating, slimmer body and thinner frames fit to any type of office
- Intuitive UI/UX with motion detection to attract people attention and save your steps to start a meeting
- Video conference-ready with built-in speakers
- InGlass™ by FlatFrog and Optical Bonding technologies realizing smaller parallax & accurate pen response for a greater writing experience
- Compatible with Pexip, Skype for Business, Microsoft Teams and Zoom
- Designed for ease of use with a choice between a RICOH or an OS free controller, allowing you to work the way that suits you best
- Includes a variety of connectivity options, including multiple USB ports and Bluetooth connectivity for smart devices
- Adding RICOH Streamline NX enables secure card-based device access and allows you to email and print anything produced on the whiteboard
- Dust- resistant function ideal for construction sites and factories
- DICOM SIM projection mode for medical training
- Specifications
-
GENERAL Interface (input) - Video VGA, HDMI, DisplayPort™ Interface (input) - Audio Line 3.5 mm Interface (output) - Video DisplayPort™ Interface (output) - Audio Speaker-out Interface (output) - Control USB3.0 Type B Enhanced features Text OCR, Network folder, Remote web browser viewing, Finger touch highlight, Zooming, Remote sharing function, Remote PC operation, E-mail function, Print function Built-in speaker 12 W x 2 Dimensions (W x D x H) 1,733 x 79 x 1,045 mm Weight - Mainframe 59 kg Weight - Full configuration 61 kg Power source 100 - 240 V, 50/60 Hz Control RS-232C(PC-control) Motion detection sensor Yes Dust resistant function IP5X equivalent ECOLOGY Power consumption - Maximum 500 W Power consumption - Stand-by mode 0.3 W Operating temperature 0°C - 32°C Operating humidity 10% - 80% Storage conditions - Humidity 15% - 80% DISPLAY PANEL Panel size - Diagonal 75" wide ( mm) Backlight DLED system Effective display area (W x H) 1,650.24 x 928.26 mm Resolution - Maximum 3,840 x 2,160 dot Colour - Maximum Over 1,070,000,000 colours Brightness - Maximum 440 cd/m² Aspect ratio 16 : 9 Contrast ratio 4,000 : 1 Pixel pitch 0.429 x 0.429 mm Response speed 8 ms (Grey to Grey, Ave.) Viewing angle (H/V) 178°/178° (Contrast ratio >= ) Cover glass - Thickness 2mm Cover glass - Anti-glare AG pre-treated, AF (Anti-fingerprint) Display orientation Landscape TOUCH SYSTEM Touch technology InGlass™, Optical bonding Touch point 20 point (display only) Touch resolution 19,353 x 10,886 Accuracy +/- 1.2 mm in touchable area Touch pen request >= 2 mm Touch output USB 3.0 (type B) OS - Multi touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 IoT, Windows Embedded 7 Standard, Windows 10 Enterprise OS - Single touch Windows 8/8.1, Windows 8/8.1 Pro, Windows 8/8.1 Enterprise, Windows Embedded 7 P, Windows Embedded 8 Standard, Windows 10 Home, Windows 10 Pro, Windows 10 Enterprise, Windows 10 IoT, Mac OS X 10.8 - Mac OS X 10.15
